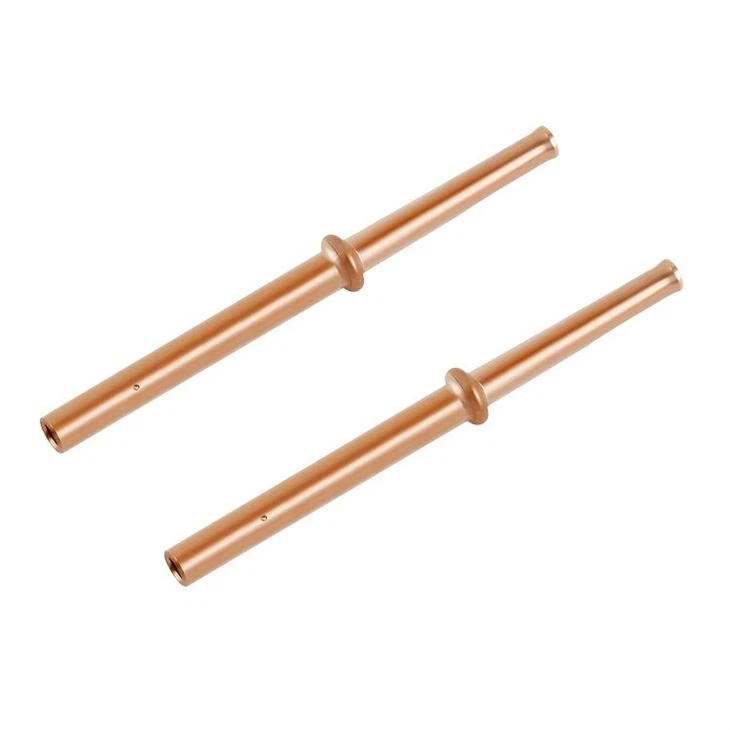

Refrigerator Compressor CopperFittings
As the name implies, process tube is a process to be used in the production of refrigerator production line there are several procedures "vacuuming liquid sealing" are for the general maintenance of the process tube refrigerator with it and three-way valve to extract vacuum and liquid.
1.When two copper pipes are together, heat dissipation is accelerated and the heat is quickly transferred away;
2.It has not been red-hot for a long time, but you have turned down the oxygen. Turn up the oxygen a little bit, but be careful not to burn through the tube.
From the point of view of the structure design of refrigerator compressor, the interface of process tube and low-pressure tube is interchangeable, which will not affect the normal operation of the compressor.

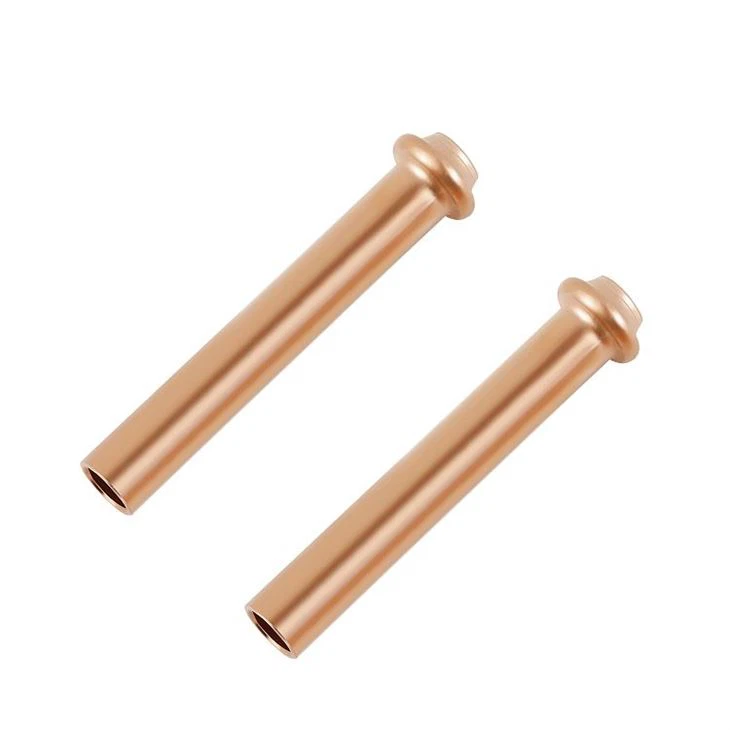

Copper Fittings for Refrigerator
The process tube on the compressor is the port for filling and discharging the refrigerant (refrigerant), vacuuming the compressor and the connected condenser and evaporator as well as the system pressure test. It is also the final closed port after the above work is completed.
Generally, the process tube of the compressor will be sealed by gas welding after filling with refrigerant and lubricating oil. The tube you find that is not connected to the compressor is the process tube.

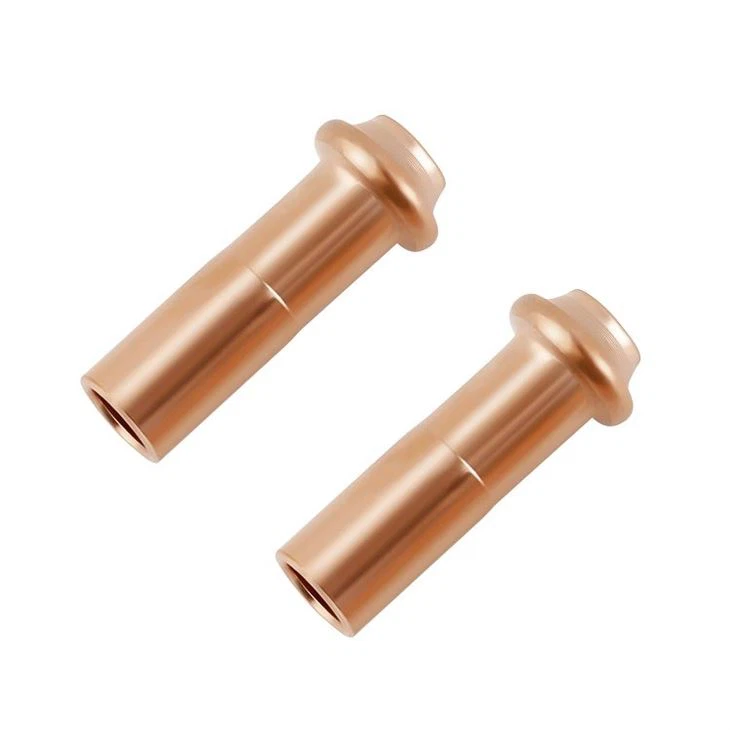

Copper Fittings for Refrigeration
The thermal conductivity of copper is better than aluminum, welding performance, mechanical strength is far better than aluminum, although the price is also more expensive than aluminum, but the first choice of copper pipe.
Process tube is very short, you have to do is to weld down the original process tube, new process tube, it is recommended not to install one-way valve, according to my experience one-way valve is a cause of fluorine leakage.

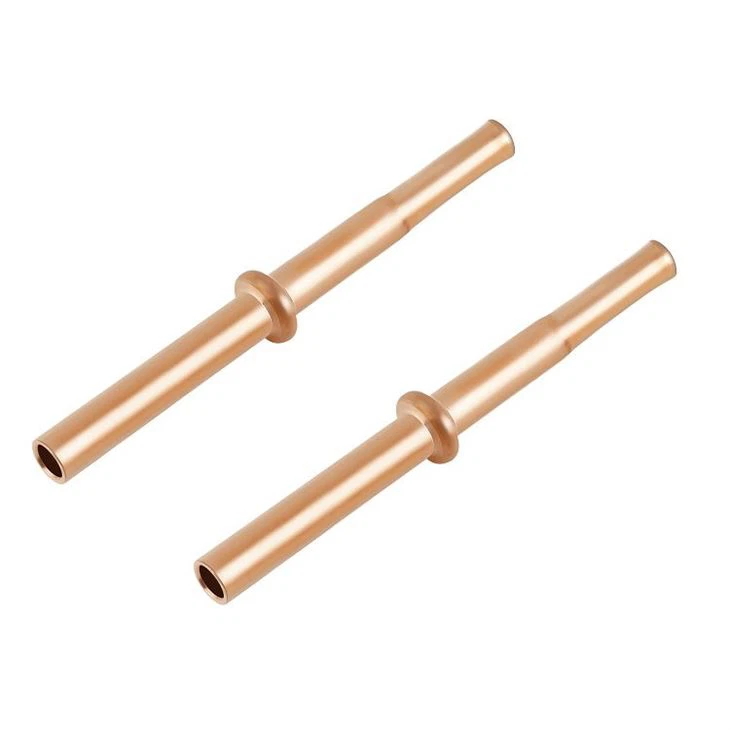

Refrigerator Compressor Process Tube
Stress will lead to coupling assembly concentricity deviation, the deviation is too large when the unit is easy to cause the breadth of overweight, bearing overheating, serious when can cause compressor damage.
According to the thickness of pipeline bai, the suction pipe of the air conditioning compressor is relatively thick, while the exhaust pipe is relatively thin.

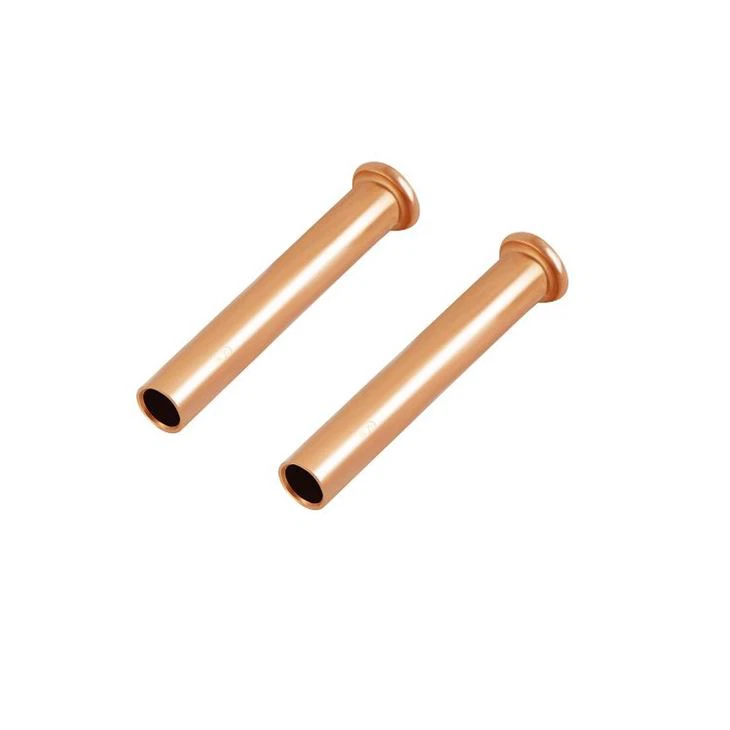

Refrigerator Compressor Connection Pipe
The first suction tube coarse can alleviate the pressure drop in the suction tube, to maintain the exhaust pipe of high pressure suction tube coarse can maintain a larger air intake; The second exhaust flow rate is high, the suction flow rate is low, so the pipe diameter is not the same.

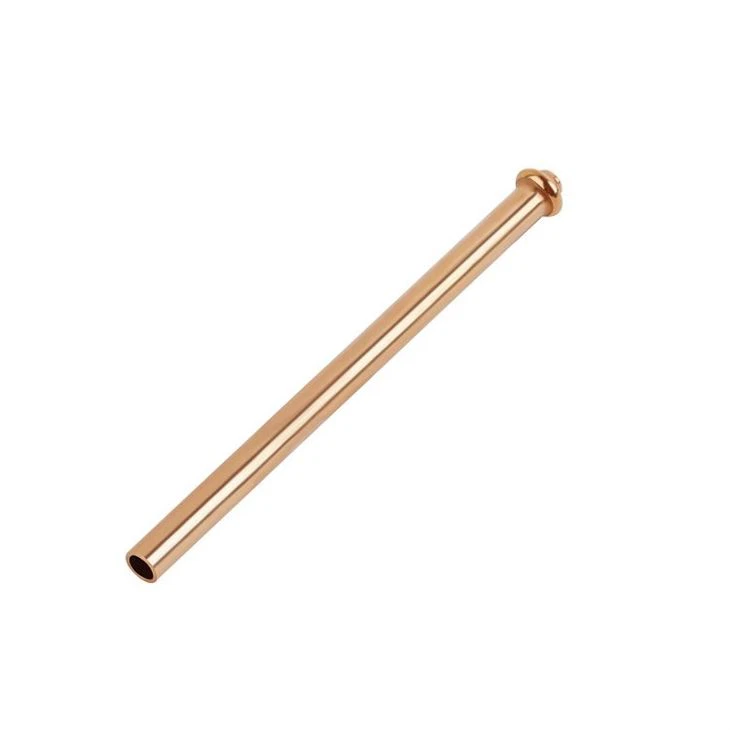

Refrigerator Copper Exhaust Pipe
The exhaust pipe on an air conditioning compressor is disclosed with a new type, including a copper inner tube and a steel outer tube. The copper inner tube is provided with knurled rashes.
Copper Tubing for Refrigeration
At the same time, due to the use of interference or compact way of installation, due to the use of metal pipe fittings, pipe fittings need to be squeezed to achieve installation, during the extrusion installation process, it is easy to cause pipe fittings broken or damaged, easy to cause the hidden trouble of air tightness.
